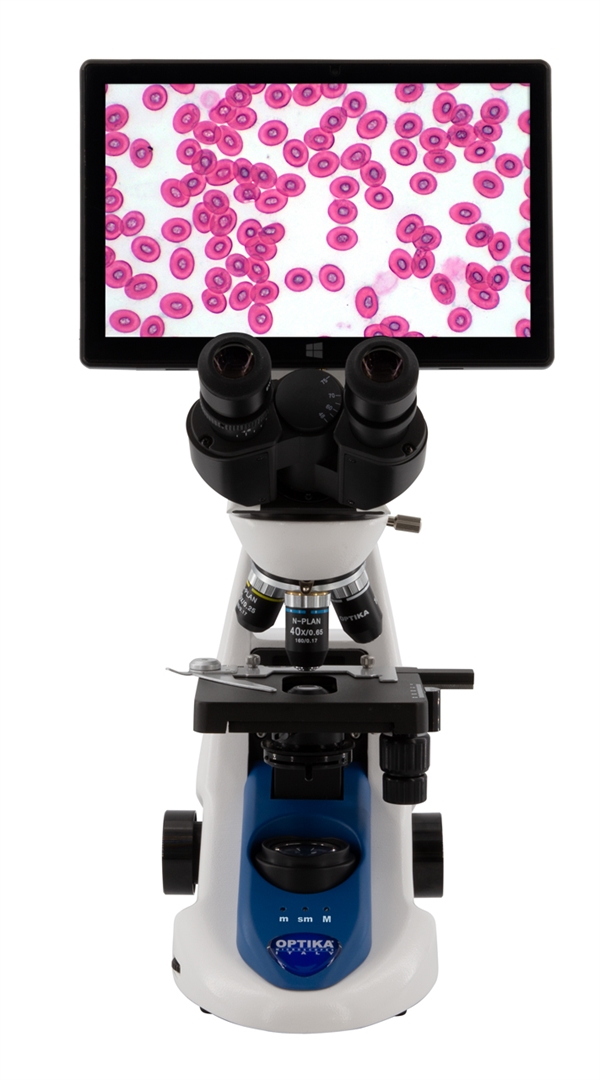

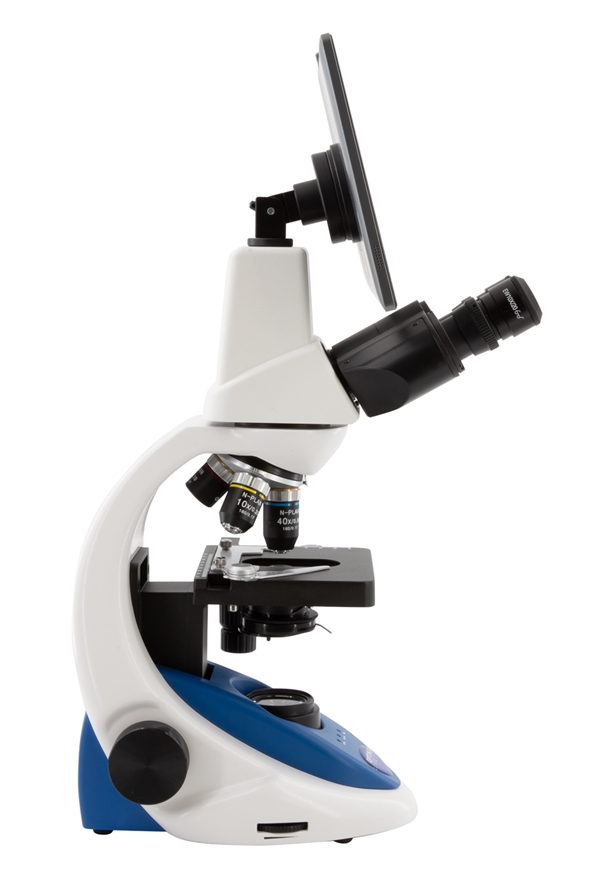

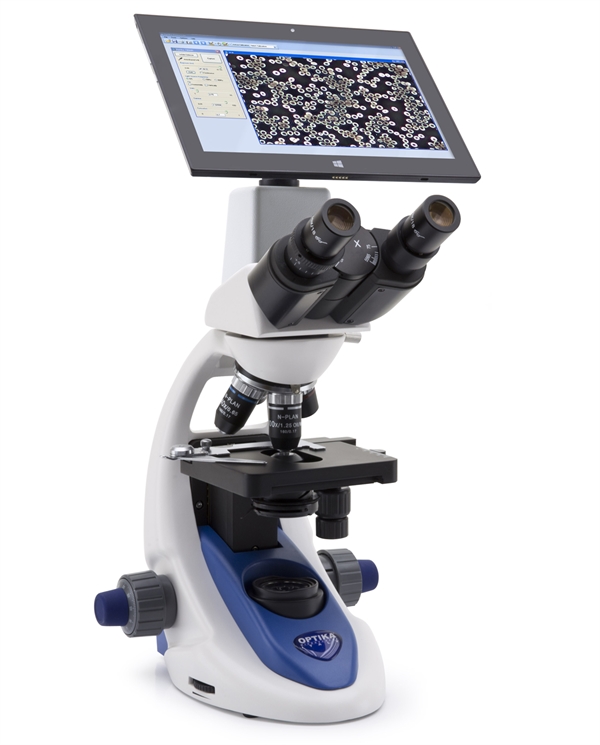

Mikroskop Optika B-190TBPL+ bionkulært m/skærm 1000x Plan autofocus

Brightfield microscope with motorized focus system, 5MP digital head , 1000x, PLAN

B-190TBPL+ offers the same features than B-190TBPL but with an upgraded 5Mp camera and a fully electronically controlled triple motorized focus adjustment: Macro, Semi-Micro and Micro. The new X-OEF system (Optika EasyFocus system) replaces the classic mechanical focusing system with an innovative solution that allows more functions.
EasyFocus allows the selection of three different resolutions (shift for each step): Macro (250 μm); Semi-Micro (8 μm); Micro (1 μm).
The new X-OEF system includes a stage retraction function that facilitates and speeds up immersion oil laying and slide changing operations.
Each focus resolution (Macro, Semi-Micro and Micro) is clearly displayed to the user by three dedicated blue LEDs.

Head: Binocular with integrated 5 MP camera, 30° inclined; 360° rotating.
Detachable Digital Imaging Unit included, rotating and tilting.

Optika is proud to introduce the first routine microscope with fully electronically controlled triple focus adjustment: Macro, Semi-Micro and Micro. The new X-OEF system (Optika EasyFocus system) replaces the classic mechanical focusing system with an innovative solution that allows more functions. EasyFocus allows the selection of three different resolutions (shift for each step): Macro (250 μm) – Semi-Micro (8 μm) – Micro (1 μm).

Dioptric adjustment: Left eyepiece.
Eyepieces: WF10x/18 mm, high eyepoint, secured by screw.
Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.
Objectives:
– N-PLAN objective 4x/0.10
– N-PLAN objective 10x/0.25
– N-PLAN objective 40x/0.65
– N-PLAN objective 100x/1.25 (Oil/Water). All with anti-fungus treatment.

Specimen stage: Mechanical stage, 125×115 mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.
Focusing: X-OEF system with three different resolutions (Macro; Semi-Micro; Micro) and stage retraction function.
Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
Illumination: X-LED² with white 3 W LED and brightness control. Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply.
