Røntgenapparat, Energi detektor PHYWE

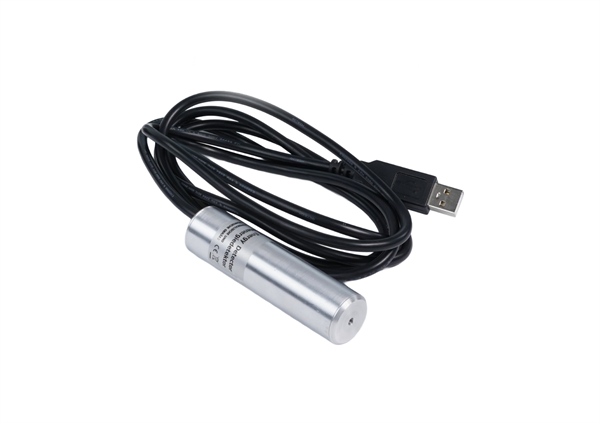

The X-ray energy detector (XRED) allows direct measurement of the energy of individual X-ray photons.

Benefits

• Determine and analyze the complete X-ray energy spectrum of the examined material
• Easy calibration; characteristic X-ray lines for all elements of the periodic table are integrated into the software
• Can be mounted directly on the goniometer of the X-ray device; the full functionality of the goniometer is retained
• Direct USB connection provides supply voltages

Technical Specification

• Energy range: 2 to 60 keV
• Energy resolution: 0.55 keV (FWHM)
• Entrance window: Plastic
• Detector: Si-PIN photodiode
• Active area of the detector: 0.8 mm diameter
• Detector thickness: approx. 200 μm
• Dead time per pulse: approx. 200 μs
• Connection: USB
• Cable length: 1.75 m
• Dimensions: Length 80 mm, Diameter 22 mm
• Weight: 150 g
